Hanbell pro střední až vysokou teplotu
Šneková jednotka Hanbell pro střední až vysoké teploty je vysoce účinné integrované chladicí řešení speciálně navržené pro aplikace se střední až vysokou teplotou odpařování. Jednotka klade důraz na stabilitu systému, provozní spolehlivost a snadné použití v inženýrských projektech. Vyznačuje se kompaktní konstrukcí vše v jednom, která vysoce integruje šroubový kompresor, odlučovač oleje, chladič oleje, zásobník kapaliny, ekonomizér, regulátor tlaku a elektrickou ovládací skříň. Navíc je vybaven modulárním rámem, uzavíracími ventily, zpětnými ventily, pojistnými ventily a systémem vstřikování oleje, který dodává plně funkční chladicí jednotku přímo z výroby. Tento integrovaný design zjednodušuje instalaci a uvedení do provozu na místě a zvyšuje efektivitu projektu.
Jednotka je komplexně nakonfigurována se všemi hlavními chladicími komponenty a ovládacími prvky od renomovaných značek, aby byl zajištěn koordinovaný provoz mezi komponenty, což zvyšuje celkovou spolehlivost systému a provozní bezpečnost. Modulární konstrukce rámu poskytuje flexibilitu pro budoucí rozšíření nebo údržbu, snižuje celkovou složitost provozu a údržby a zároveň zajišťuje konzistentní výkon při středních až vysokých teplotách.
Úvod do parametrů zařízení

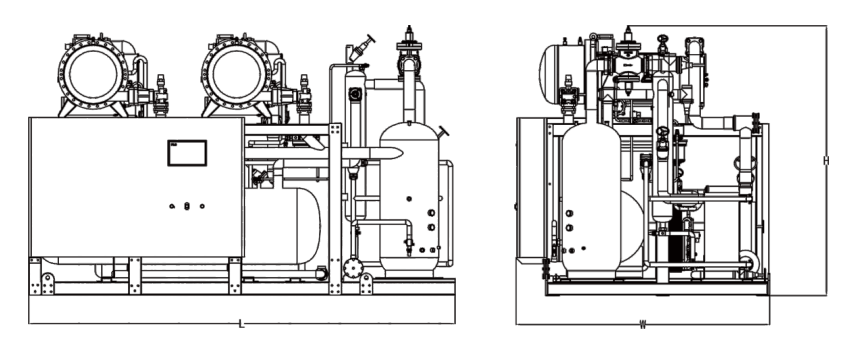

Detailní zobrazení
Kontaktujte nás
Úvod do parametrů zařízení
| Model jednotky | Com.Model | Com, Pečlivost | Kondenzační tepl. (℃) | Teplota odpařování (℃) | Nádrž (L) | Zásobování potrubí (mm) | Odsávání potrubí (mm) | Prodejna plynu potrubí (mm) | kapalina vstupní potrubí (mm) | Rozměr (mm) (dxšxv) | |||||||||
| -15 | -10 | -5 | 0 | 5 | |||||||||||||||
| Kapacita chlazení/příkon (kw) | |||||||||||||||||||
| LXPL-BHF-30M | RC2-100B -Z (30 HP) | 1 | 35 | 47. | 18.7 | 38.1 | 19.4 | 70.6 | 20.1 | 85.2 | 20.7 | 101.2 | 21.2 | 80 | Φ28 | Φ54 | Φ42 | Φ35 | 1700×900×1100 |
| 40 | 43.8 | 20.4 | 34.1 | 21.2 | 66.4 | 22.0 | 80.3 | 22.7 | 96.4 | 23.3 | |||||||||
| 45 | 40.3 | 22.2 | 50.0 | 23.1 | 61.6 | 24.0 | 74.8 | 24.8 | 90.4 | 25.3 | |||||||||
| LXPL-BHF2 -60 mil | RC2-100B -ZP (30 HP) | 2 | 35 | 94.2 | 37.4 | 116.2 | 38.8 | 141.2 | 40.2 | 170.4 | 41.4 | 202.4 | 42.4 | 100 | Φ35 | Φ89 | Φ54 | Φ35 | 2300×1700×1800 |
| 40 | 87.6 | 40.8 | 108.2 | 42.4 | 132.8 | 44.0 | 160.6 | 45.4 | 192.8 | 46.6 | |||||||||
| 45 | 80.6 | 44.4 | 100.0 | 46.2 | 123.2 | 48.0 | 149.6 | 49.6 | 180.8 | 50.6 | |||||||||
| LXPL-BHF3 -90 mil | 3 | 35 | 141.3 | 56.1 | 174.3 | 58.2 | 211.8 | 60.3 | 255.6 | 62.1 | 306.3 | 63.6 | 150 | Φ42 | Φ89×2 | Φ54 | Φ42 | 3000×1700×1800 | |
| 40 | 131.4 | 61.2 | 162.3 | 63.6 | 1992 | 66.0 | 240.9 | 68.1 | 289.2 | 69.9 | |||||||||
| 45 | 120.9 | 66.6 | 150.0 | 69.3 | 184.8 | 72.0 | 224.4 | 74.4 | 271.2 | 75.9 | |||||||||
| LXPL-BHF4 -120 mil | 4 | 35 | 188.4 | 74.8 | 232.4 | 77.6 | 282.4 | 80.4 | 340.8 | 82.8 | 408.4 | 84.8 | 200 | Φ57 | Φ108 ×2 | Φ108 | Φ76 | 3700×1700×1800 | |
| 40 | 1752 | 81.6 | 216.4 | 84.8 | 265.6 | 88.0 | 321.2 | 90.8 | 385.6 | 93.2 | |||||||||
| 45 | 161.2 | 88.8 | 200.0 | 92.4 | 246.4 | 96.0 | 299.2 | 99.2 | 361.6 | 101.2 | |||||||||
| LXPL-HF -40 mil | RC2-140B -Z (40HP) | 1 | 35 | 65.1 | 24.4 | 80.2 | 25.4 | 97.6 | 26.3 | 117.8 | 271.0 | 141.0 | 27.8 | 80 | Φ28 | Φ54 | Φ42 | Φ35 | 1730×700×1100 |
| 40 | 60.7 | 26.6 | 74.9 | 27.7 | 91.7 | 28.7 | 110.9 | 29.6 | 133.2 | 30.4 | |||||||||
| 45 | 55.9 | 29.1 | 69.3 | 30.3 | 85.2 | 31.4 | 103.4 | 32.5 | 124.9 | 33.4 | |||||||||
| LXPL-BHF2 -80 mil | RC2-140B -ZP (40HP) | 2 | 35 | 130.2 | 48.8 | 160.4 | 50.8 | 1952 | 52.6 | 235.6 | 54.2 | 282.0 | 55.6 | 150 | Φ35 | Φ108 | Φ54 | Φ35 | 2300×1700×1800 |
| 40 | 121.4 | 53.2 | 149.8 | 55.4 | 183.4 | 57.4 | 221.8 | 59.2 | 266.4 | 60.8 | |||||||||
| 45 | 111.8 | 58.2 | 138.6 | 60.6 | 170.4 | 62.8 | 206.8 | 65.0 | 249.8 | 66.8 | |||||||||
| LXPL-BHF3 -120 mil | 3 | 35 | 195.3 | 73.2 | 240.6 | 76.2 | 292.8 | 78.9 | 353.4 | 81.3 | 423.0 | 83.4 | 200 | Φ42 | Φ89×2 | Φ76 | Φ42 | 3000×1700×1800 | |
| 40 | 182.1 | 79.8 | 224.7 | 83.1 | 275.1 | 86.1 | 332.7 | 88.8 | 399.6 | 91.2 | |||||||||
| 45 | 167.7 | 87.3 | 207.9 | 90.9 | 2556 | 94.2 | 310.2 | 97.5 | 374.7 | 100.2 | |||||||||
| LXPL-BHF4 -160 mil | 4 | 35 | 260.4 | 97.6 | 320.8 | 101.5 | 309.4 | 105.2 | 471.2 | 108.4 | 564.0 | 111.2 | 250 | Φ57 | Φ108 ×2 | Φ108 | Φ76 | 3800×1700×1800 | |
| 40 | 242.8 | 106.4 | 299.6 | 110.8 | 366.8 | 114.8 | 443.6 | 118.4 | 532.8 | 121.6 | |||||||||
| 45 | 223.6 | 116.4 | 277.2 | 121.2 | 340.8 | 125.6 | 413.6 | 130.0 | 499.6 | 133.6 | |||||||||
| LXPL-HF -50 mil | RC2-180B -Z (50 HP) | 1 | 35 | 85.9 | 30.3 | 105.3 | 31.5 | 128.1 | 32.6 | 154.6 | 33.6 | 185.1 | 34.5 | 100 | Φ35 | Φ67 | Φ42 | Φ35 | 2300×900×1100 |
| 40 | 79.8 | 33.1 | 98.4 | 34.4 | 120.4 | 35.7 | 145.6 | 36.8 | 174.8 | 37.8 | |||||||||
| 45 | 73.6 | 36.1 | 91.1 | 37.6 | 112.3 | 39.0 | 136.2 | 40.3 | 163.9 | 41.5 | |||||||||
| LXPL-BHF2 -100 mil | RC2-180B -ZP (50 HP) | 2 | 35 | 171.8 | 60.6 | 210.6 | 63.0 | 2562 | 652 | 309.2 | 67.2 | 370.2 | 69.0 | 200 | Φ42 | Φ108 | Φ76 | Φ42 | 2300×1700×1800 |
| 40 | 159.6 | 66.2 | 195.8 | 88.8 | 240.8 | 74.1 | 291.2 | 73.6 | 349.6 | 75.6 | |||||||||
| 45 | 147.2 | 72.2 | 182.2 | 75.2 | 224.6 | 78.0 | 272.4 | 80.6 | 327.8 | 83.0 | |||||||||
| LXPL-BHF3 -150 mil | 3 | 35 | 257.7 | 90.9 | 315.9 | 94.5 | 384.3 | 97.8 | 463.8 | 100.8 | 555.3 | 103.5 | 250 | Φ54 | Φ89×2 | Φ76 | Φ54 | 3500×1700×1800 | |
| 40 | 239.4 | 99.3 | 295.2 | 103.2 | 361.2 | 107.1 | 436.8 | 110.4 | 524.4 | 113.4 | |||||||||
| 45 | 220.8 | 108.3 | 273.3 | 112.8 | 336.9 | 117.0 | 408.6 | 120.9 | 491.7 | 124.5 | |||||||||
| LXPL-BHF4 -200 mil | 4 | 35 | 343.5 | 121.2 | 421.2 | 126.0 | 512.4 | 130.4 | 618.4 | 134.4 | 740.4 | 138.0 | 300 | Φ57 | Φ108 ×2 | Φ108 | Φ76 | 4400×1700×1800 | |
| 40 | 319.2 | 132.4 | 393.8 | 137.6 | 481.6 | 142.8 | 582.4 | 147.2 | 699.2 | 151.2 | |||||||||
| 45 | 294.4 | 144.4 | 364.4 | 150.4 | 449.2 | 156.0 | 544.8 | 161.2 | 655.6 | 166.0 | |||||||||
| Model jednotky | Com.Model | Com. Krátkost | Kondenzační tepl. (℃) | Teplota odpařování (℃) | Nádrž (L) | Zásobování potrubí (mm) | Odsávání potrubí (mm) | Prodejna plynu potrubí (mm) | kapalina vstupní potrubí (mm) | Rozměr (mm) (D׊×V) | |||||||||
| -15 | -10 | -5 | 0 | 5 | |||||||||||||||
| Chladicí výkon/příkon (kw) | |||||||||||||||||||
| LXPL-BHF-55M | RC2-200B -Z (55 HP) | 1 | 35 | 91.9 | 33.6 | 113.1 | 34.9 | 137.6 | 36.1 | 166.1 | 37.3 | 198.9 | 38.2 | 100 | Φ42 | Φ76 | Φ42 | Φ54 | 2300×900×1100 |
| 40 | 85.7 | 36.6 | 105.7 | 38.1 | 129.4 | 39.5 | 156.5 | 40.8 | 187.8 | 41.9 | |||||||||
| 45 | 78.9 | 40.0 | 97.8 | 41.6 | 120.2 | 43.2 | 146.3 | 44.7 | 176.1 | 46.0 | |||||||||
| LXPL-BHF2 -110 mil | RC2-200B -ZP (55 HP) | 2 | 35 | 183.8 | 67.2 | 226.2 | 69.8 | 275.2 | 72.2 | 332.2 | 74.6 | 397.8 | 76.4 | 200 | Φ57 | Φ108 | Φ76 | Φ76 | 2330×1700×1100 |
| 40 | 171.4 | 73.2 | 211.4 | 73.2 | 258.8 | 79.0 | 313.0 | 81.6 | 375.6 | 83.3 | |||||||||
| 45 | 157.8 | 80.0 | 195.6 | 83.2 | 240.4 | 86.4 | 292.6 | 89.4 | 352.2 | 92.0 | |||||||||
| LXPL-BHF3 -165 mil | 3 | 35 | 275.7 | 100.8 | 399.3 | 104.7 | 412.8 | 108.3 | 498.3 | 111.9 | 596.7 | 114.6 | 250 | Φ57 | Φ89×2 | Φ89 | Φ76 | 2300×1700×1800 | |
| 40 | 257.1 | 109.8 | 317.1 | 114.3 | 388.2 | 188.5 | 469.5 | 122.4 | 563.4 | 125.7 | |||||||||
| 45 | 236.7 | 120.2 | 293.4 | 124.8 | 360.6 | 129.6 | 438.9 | 134.1 | 528.3 | 138.0 | |||||||||
| LXPL-BHF4 -220 mil | M | 35 | 367.6 | 134.4 | 452.4 | 139.6 | 550.4 | 144.4 | 664.4 | 149.2 | 795.6 | 152.8 | 300 | Φ57 | Φ108 ×2 | Φ108 | Φ76 | 4400×1700×1800 | |
| 40 | 342.8 | 146.4 | 422.8 | 152.4 | 517.6 | 158.0 | 626.0 | 163.2 | 751.2 | 167.6 | |||||||||
| 45 | 315.6 | 160.0 | 391.2 | 166.4 | 480.8 | 172.8 | 585.2 | 177.8 | 704.4 | 184.0 | |||||||||
| LXPL-HF -60 mil | RC2-230B -Z (60HP) | 1 | 35 | 114.1 | 33.6 | 140.5 | 44.2 | 170.9 | 45.8 | 206.3 | 47.3 | 247.1 | 48.4 | 150 | Φ35 | Φ76 | Φ54 | Φ35 | 2300×900×1250 |
| 40 | 106.3 | 46.4 | 131.2 | 48.3 | 160.7 | 50.0 | 194.4 | 51.7 | 233.3 | 53.1 | |||||||||
| 45 | 97.9 | 50.7 | 121.4 | 52.8 | 149.3 | 54.7 | 181.7 | 56.6 | 218.8 | 58.2 | |||||||||
| LXPL-BHF2 -120 mil | RC2-230B -ZP (60HP) | 2 | 35 | 228.2 | 85.0 | 281.0 | 88.4 | 341.8 | 91.6 | 412.6 | 94.4 | 494.2 | 96.8 | 200 | Φ42 | Φ133 | Φ76 | Φ42 | 2600×1700×1900 |
| 40 | 212.6 | 92.8 | 262.4 | 96.6 | 321.4 | 100.0 | 388.8 | 103.4 | 466.6 | 106.2 | |||||||||
| 45 | 195.8 | 101.4 | 242.8 | 105.6 | 298.6 | 109.4 | 363.4 | 113.2 | 437.6 | 116.4 | |||||||||
| LXPL-BHF3 -180 mil | 3 | 35 | 342.3 | 127.5 | 421.5 | 132.6 | 512.7 | 134.7 | 618.9 | 141.6 | 741.3 | 145.2 | 300 | Φ54 | Φ108 ×2 | Φ76 | Φ67 | 3500×1700×1900 | |
| 40 | 318.9 | 139.2 | 393.6 | 144.9 | 482.1 | 150.0 | 583.2 | 155.1 | 699.9 | 159.3 | |||||||||
| 45 | 293.7 | 152.1 | 364.2 | 158.4 | 447.9 | 164.1 | 545.1 | 169.8 | 656.4 | 174.6 | |||||||||
| LXPL-BHF4 -240 mil | 4 | 35 | 456.4 | 170.0 | 562.0 | 176.8 | 683.6 | 183.2 | 825.2 | 188.8 | 988.4 | 193.6 | 400 | Φ57 | Φ133 ×2 | Φ108 | Φ89 | 4400×1700×1900 | |
| 40 | 425.2 | 185.6 | 524.8 | 193.2 | 642.8 | 200.0 | 777.6 | 206.8 | 933.2 | 212.4 | |||||||||
| 45 | 391.6 | 202.8 | 485.6 | 211.2 | 597.2 | 218.8 | 726.8 | 266.4 | 875.2 | 232.8 | |||||||||
| LXPL-HF -70 mil | RC2-260B -Z (70 HP) | 1 | 35 | 123.4 | 43.8 | 151.3 | 45.6 | 184.1 | 47.2 | 222.2 | 448.7 | 266.1 | 49.9 | 150 | Φ35 | Φ76 | Φ54 | Φ35 | 2300×900×1250 |
| 40 | 114.7 | 47.9 | 141.5 | 49.8 | 173.1 | 51.6 | 209.3 | 53.3 | 251.3 | 54.7 | |||||||||
| 45 | 105.7 | 52.3 | 130.9 | 54.4 | 161.4 | 56.4 | 195.7 | 58.3 | 235.6 | 60.0 | |||||||||
| LXPL-BHF2 -140 mil | RC2-260B -ZP (70 HP) | 2 | 35 | 246.8 | 87.6 | 302.6 | 91.2 | 368.2 | 94.4 | 444.4 | 97.4 | 532.2 | 99.8 | 200 | Φ54 | Φ133 | Φ76 | Φ54 | 2600×1700×1900 |
| 40 | 229.4 | 95.8 | 283.0 | 99.6 | 346.2 | 103.2 | 418.6 | 106.6 | 502.6 | 109.4 | |||||||||
| 45 | 211.4 | 104.6 | 261.8 | 108.8 | 322.8 | 112.8 | 391.4 | 116.6 | 471.2 | 120.0 | |||||||||
| LXPL-BHF3 -210 mil | 3 | 35 | 370.2 | 131.4 | 453.9 | 136.8 | 552.3 | 141.6 | 666.6 | 146.1 | 798.3 | 149.7 | 300 | Φ54 | Φ108 ×2 | Φ108 | Φ67 | 3500×1700×1900 | |
| 40 | 344.1 | 143.7 | 424.5 | 149.4 | 591.3 | 154.8 | 627.9 | 159.9 | 753.9 | 164.1 | |||||||||
| 45 | 317.1 | 156.9 | 392.7 | 163.2 | 484.2 | 169.2 | 587.1 | 174.9 | 706.8 | 180.0 | |||||||||
| LXPL-BHF4 -280 mil | 4 | 35 | 493.6 | 175.2 | 605.2 | 182.4 | 736.4 | 188.8 | 888.8 | 194.8 | 1064.4 | 199.6 | 400 | Φ57 | Φ133 ×2 | Φ108 | Φ89 | 4400×1700×1900 | |
| 40 | 458.8 | 191.6 | 566.0 | 199.2 | 692.4 | 206.4 | 837.2 | 213.2 | 1005.2 | 218.8 | |||||||||
| 45 | 422.8 | 209.2 | 523.6 | 217.6 | 645.6 | 225.6 | 782.8 | 233.2 | 942.4 | 240.0 | |||||||||
| Model jednotky | Cam.Model | Com, Pečlivost | Kondenzační teplota (℃) | Teplota odpařování (℃) | Nádrž (L) | Zásobování potrubí (mm) | Odsávání potrubí (mm) | Prodejna plynu potrubí (mm) | kapalina vstupní potrubí (mm) | Rozměr (mm) (D׊×V) | ||||||||||
| -15 | -10 | -5 | 0 | 5 | ||||||||||||||||
| Chladicí kapacita/příkon (kw) | ||||||||||||||||||||
| LXPL-BHF-75M | RC2-300B -Z (75 HP) | 1 | 35 | 145.4 | 50.5 | 178.3 | 52.5 | 216.9 | 54.4 | 261.8 | 56.1 | 313.6 | 57.5 | 200 | Φ57 | Φ89 | Φ67 | Φ67 | 2300×900×1250 | |
| 40 | 135.3 | 55.2 | 167.3 | 57.4 | 203.9 | 59.5 | 246.6 | 61.4 | 296.1 | 63.1 | ||||||||||
| 45 | 127.4 | 60.3 | 154.4 | 62.7 | 190.1 | 65.1 | 230.6 | 67.3 | 277.6 | 69.2 | ||||||||||
| LXPL-BHF2 -150 mil | RC2-300B -ZP (75 HP) | 2 | 35 | 290.8 | 101.0 | 356.6 | 105.0 | 433.8 | 108.8 | 523.6 | 112.2 | 627.2 | 115.0 | 250 | Φ57 | Φ133 | Φ89 | Φ76 | 2600×1700×1900 | |
| 40 | 270.6 | 101.0 | 334.6 | 114.8 | 407.8 | 119.0 | 493.2 | 122.8 | 5922 | 126.2 | ||||||||||
| 45 | 249.4 | 120.6 | 308.8 | 125.4 | 380.2 | 130.2 | 461.2 | 134.6 | 555.2 | 138.4 | ||||||||||
| LXPL-BHF3 -225 mil | 3 | 35 | 436.2 | 151.5 | 534.9 | 157.5 | 650.7 | 163.2 | 785.4 | 168.3 | 940.8 | 172.5 | 400 | Φ57 | Φ108 ×2 | Φ108 | Φ89 | 3500×1700×1900 | ||
| 40 | 405.9 | 165.6 | 501.9 | 172.2 | 611.7 | 178.5 | 739.8 | 184.2 | 888.3 | 189.3 | ||||||||||
| 45 | 374.1 | 180.9 | 463.2 | 188.1 | 570.3 | 195.3 | 691.8 | 201.9 | 832.8 | 207.6 | ||||||||||
| LXPL-BHF4 -300 mil | 4 | 35 | 581.6 | 202.0 | 731.2 | 210.0 | 867.6 | 217.6 | 1047.2 | 224.4 | 1254.4 | 230.0 | 500 | Φ57 | Φ133 ×2 | Φ108 | Φ89 | 4400×1700×1900 | ||
| 40 | 541.2 | 220.8 | 699.2 | 229.6 | 815.6 | 238.0 | 986.4 | 245.6 | 1184.4 | 252.4 | ||||||||||
| 45 | 498.8 | 241.2 | 617.6 | 250.8 | 760.4 | 260.4 | 922.4 | 269.2 | 1110.4 | 276.8 | ||||||||||
| LXPL-HF -80 mil | RC2-310B -Z (80 HP) | 1 | 35 | 153.7 | 53.8 | 188.4 | 55.9 | 229.2 | 57.9 | 276.6 | 59.7 | 331.6 | 61.2 | 200 | Φ35 | Φ76 | Φ54 | Φ35 | 2600×900×1400 | |
| 40 | 142.9 | 58.7 | 176.8 | 61.1 | 215.5 | 63.3 | 260.6 | 65.3 | 312.8 | 67.1 | ||||||||||
| 45 | 131.7 | 64.1 | 163.1 | 66.7 | 200.9 | 69.2 | 243.7 | 71.6 | 293.3 | 73.6 | ||||||||||
| LXPL-BHF2 -160 mil | RC2-310B -ZP (80 HP) | 2 | 35 | 307.4 | 107.8 | 376.8 | 111.8 | 458.4 | 115.8 | 553.2 | 119.4 | 662.6 | 122.4 | 250 | Φ57 | Φ133 | Φ76 | Φ54 | 3000×1800×2100 | |
| 40 | 285.8 | 117.4 | 353.6 | 122.2 | 431.0 | 126.6 | 521.2 | 130.6 | 625.6 | 134.2 | ||||||||||
| 45 | 263.4 | 128.2 | 326.2 | 133.4 | 401.8 | 138.4 | 487.4 | 143.2 | 586.6 | 147.2 | ||||||||||
| LXPL-BHF3 -240 mil | 3 | 35 | 461.1 | 161.4 | 565.2 | 167.7 | 687.6 | 173.7 | 829.8 | 179.1 | 993.9 | 183.6 | 400 | Φ54 | Φ108 ×2 | Φ108 | Φ67 | 3500×1700×1900 | ||
| 40 | 428.7 | 176.1 | 530.4 | 183.3 | 646.5 | 189.9 | 781.8 | 195.9 | 938.4 | 201.3 | ||||||||||
| 45 | 395.1 | 192.3 | 489.3 | 200.1 | 602.7 | 207.6 | 731.1 | 214.8 | 879.9 | 220.8 | ||||||||||
| LXPL-BHF4 -320 mil | 4 | 35 | 614.8 | 215.2 | 753.6 | 223.6 | 916.8 | 231.6 | 1106.4 | 238.8 | 1325.2 | 244.8 | 500 | Φ57 | Φ133 ×2 | Φ108 | Φ89 | 4000×1700×1900 | ||
| 40 | 571.6 | 234.8 | 707.2 | 244.4 | 862.0 | 253.2 | 1042.4 | 261.2 | 1251.2 | 268.4 | ||||||||||
| 45 | 526.8 | 256.4 | 376.8 | 266.8 | 803.6 | 276.8 | 974.8 | 286.4 | 1173.2 | 299.4 | ||||||||||
| LXPL-HF -90 mil | RC2-340B -Z (90 HP) | 1 | 35 | 171.1 | 58.0 | 209.8 | 60.3 | 255.2 | 62.5 | 308.0 | 64.4 | 368.9 | 66.1 | 200 | Φ42 | Φ108 | Φ67 | Φ54 | 2600×850×1400 | |
| 40 | 159.3 | 63.4 | 196.8 | 65.9 | 239.9 | 68.3 | 290.1 | 70.5 | 348.3 | 72.4 | ||||||||||
| 45 | 146.9 | 69.2 | 181.8 | 72.0 | 223.7 | 74.7 | 271.3 | 77.2 | 326.6 | 79.5 | ||||||||||
| LXPL-BHF2 -180 mil | RC2-340B -ZP (90 HP) | 2 | 35 | 342.2 | 116.0 | 419.6 | 120.6 | 510.4 | 125.0 | 616.0 | 128.8 | 737.8 | 132.2 | 300 | Φ54 | Φ133 | Φ76 | Φ54 | 3000×1800×2100 | |
| 40 | 318.9 | 126.8 | 393.6 | 131.8 | 479.8 | 136.6 | 580.2 | 141.0 | 696.6 | 144.8 | ||||||||||
| 45 | 293.8 | 138.4 | 363.8 | 144.0 | 447.4 | 149.4 | 542.6 | 154.4 | 653.2 | 159.0 | ||||||||||
| LXPL-BHF3 -270 mil | 3 | 35 | 513.3 | 174.0 | 629.4 | 180.9 | 765.6 | 187.5 | 924.0 | 193.2 | 1106.7 | 198.3 | 400 | Φ57 | Φ133 ×2 | Φ108 | Φ89 | 3800×1800×2100 | ||
| 40 | 477.9 | 190.2 | 590.4 | 197.7 | 719.7 | 204.9 | 870.3 | 211.5 | 1044.9 | 217.2 | ||||||||||
| 45 | 440.7 | 207.6 | 545.4 | 216.0 | 671.1 | 224.1 | 813.9 | 231.6 | 979.8 | 238.5 | ||||||||||
| LXPL-BHF4 -360 mil | 4 | 35 | 684.4 | 232.0 | 839.2 | 241.2 | 1020.8 | 250.0 | 1232.0 | 2576 | 1475.6 | 264.4 | 600 | Φ57 | Φ159 ×2 | Φ133 | Φ89 | 4600×1800×2100 | ||
| 40 | 637.2 | 253.6 | 787.2 | 263.6 | 959.6 | 273.2 | 1160.4 | 282.0 | 1393.2 | 289.6 | ||||||||||
| 45 | 587.6 | 276.8 | 727.2 | 288.0 | 894.8 | 298.8 | 1085.2 | 308.8 | 1306.4 | 318.0 | ||||||||||
| Model jednotky | Com.Model | Com, Krátkost | Kondenzační tepl. (℃) | Teplota odpařování (℃) | Nádrž (L) | Zásobování potrubí (mm) | Odsávání potrubí (mm) | Prodejna plynu potrubí (mm) | kapalina vstupní potrubí (mm) | Rozměr (mm) (dxšxv) | ||||||||||
| -15 | -10 | -5 | 0 | 5 | ||||||||||||||||
| Sběrná kapacita/příkon (kw) | ||||||||||||||||||||
| LXPL-BHF -100 mil | RC2-370B -Z (100 HP) | 1 | 35 | 184.3 | 62.7 | 226.0 | 65.2 | 274.8 | 67.5 | 331.7 | 69.6 | 397.3 | 71.3 | 100 | Φ42 | Φ108 | Φ67 | Φ57 | 2600×850×1400 | |
| 40 | 171.5 | 68.4 | 212.0 | 71.5 | 285.4 | 73.8 | 312.5 | 76.2 | 375.1 | 78.3 | ||||||||||
| 45 | 158.1 | 74.8 | 195.8 | 77.8 | 240.9 | 80.7 | 292.2 | 83.4 | 351.7 | 85.8 | ||||||||||
| LXPL-BHF2 -200 mil | RC2-370B -ZP (100 HP) | 2 | 35 | 368.6 | 125.4 | 452.0 | 130.4 | 549.6 | 135.0 | 663.4 | 139.2 | 794.6 | 142.8 | 300 | Φ54 | Φ159 | Φ108 | Φ67 | 3500×1900×2100 | |
| 40 | 343.0 | 136.8 | 424.0 | 142.4 | 516.8 | 147.6 | 625.0 | 152.4 | 750.2 | 156.4 | ||||||||||
| 45 | 316.2 | 149.6 | 391.6 | 155.6 | 481.8 | 161.4 | 584.4 | 166.8 | 703.4 | 171.8 | ||||||||||
| LXPL-BHF3 -300 mil | 3 | 35 | 552.9 | 188.1 | 678.0 | 195.6 | 824.4 | 202.5 | 995.1 | 208.8 | 1191.9 | 214.2 | 500 | Φ57 | Φ133 ×2 | Φ108 | Φ89 | 4400×1900×2100 | ||
| 40 | 514.5 | 205.2 | 636.0 | 213.6 | 775.2 | 221.4 | 937.5 | 228.6 | 1125.3 | 234.6 | ||||||||||
| 45 | 474.3 | 224.4 | 587.4 | 233.4 | 722.7 | 242.1 | 876.6 | 205.2 | 1055.1 | 257.7 | ||||||||||
| LXPL-BHF4 -400 mil | 4 | 35 | 737.2 | 250.8 | 904.0 | 260.8 | 1099.2 | 270.0 | 1326.8 | 278.4 | 1589.2 | 285.6 | 600 | Φ57 | Φ159 ×2 | Φ133 | Φ89 | 5300×1900×2100 | ||
| 40 | 686.0 | 273.6 | 848.0 | 284.8 | 1033.6 | 295.2 | 1250.0 | 304.8 | 1500.4 | 312.8 | ||||||||||
| 45 | 632.4 | 299.2 | 783.2 | 313.2 | 963.6 | 322.8 | 1168.8 | 333.6 | 1406.8 | 343.6 | ||||||||||
| LXPL-HF -110 mil | RC2-410B -Z (110 HP) | 1 | 35 | 200.4 | 69.3 | 245.9 | 72.1 | 298.8 | 67.5 | 360.6 | 77.0 | 432.0 | 78.9 | 250 | Φ42 | Φ108 | Φ67 | Φ54 | 2750×850×1450 | |
| 40 | 186.4 | 75.7 | 230.5 | 78.7 | 280.9 | 81.6 | 339.8 | 84.3 | 407.9 | 86.5 | ||||||||||
| 45 | 171.8 | 82.7 | 212.8 | 86.0 | 261.9 | 89.3 | 317.7 | 92.3 | 352.8 | 95.0 | ||||||||||
| LXPL-BHF2 -220 mil | RC2-410B -ZP (110 HP) | 2 | 35 | 400.8 | 138.6 | 491.4 | 144.2 | 597.6 | 135.0 | 721.2 | 154.0 | 864.0 | 157.8 | 300 | Φ57 | Φ159 | Φ108 | Φ76 | 3500×1900×2150 | |
| 40 | 372.8 | 151.4 | 461.0 | 157.4 | 561.8 | 163.2 | 679.6 | 168.6 | 815.8 | 137.0 | ||||||||||
| 45 | 343.6 | 165.4 | 425.6 | 172.0 | 523.8 | 178.6 | 635.4 | 184.6 | 764.8 | 190.0 | ||||||||||
| LXPL-BHF3 -330 mil | 3 | 35 | 601.2 | 207.9 | 737.1 | 216.3 | 896.4 | 202.5 | 1081.8 | 231.0 | 1296.0 | 236.7 | 500 | Φ57 | Φ133 ×2 | Φ108 | Φ89 | 4400×1000×2150 | ||
| 40 | 559.2 | 227.1 | 691.5 | 236.1 | 842.7 | 244.8 | 1019.4 | 252.9 | 1223.7 | 259.5 | ||||||||||
| 45 | 515.4 | 248.1 | 638.4 | 258.0 | 785.7 | 267.9 | 953.1 | 276.9 | 1147.2 | 285.0 | ||||||||||
| LXPL-BHF4 -440 mil | 4 | 35 | 801.6 | 277.2 | 982.8 | 288.4 | 1195.2 | 270.0 | 1442.4 | 308.0 | 1728.0 | 315.6 | 600 | Φ57 | Φ159 ×2 | Φ133 | Φ89 | 5300×1900×2150 | ||
| 40 | 745.6 | 302.8 | 922.0 | 314.8 | 1123.6 | 326.4 | 1359.2 | 337.2 | 1631.6 | 346.0 | ||||||||||
| 45 | 687.2 | 330.8 | 851.2 | 344.0 | 1047.6 | 357.2 | 1270.8 | 369.2 | 1529.6 | 380.0 | ||||||||||
| LXPL-HF -125 mil | RC2-470B -Z (125 HP) | 1 | 35 | 238.6 | 80.1 | 292.5 | 83.3 | 355.8 | 86.3 | 429.4 | 88.9 | 514.3 | 91.2 | 250 | Φ42 | Φ108 | Φ67 | Φ54 | 2750×870×1450 | |
| 40 | 222.2 | 87.5 | 274.4 | 91.0 | 334.5 | 94.3 | 404.5 | 97.3 | 485.6 | 100.0 | ||||||||||
| 45 | 204.8 | 95.5 | 253.6 | 994 | 311.9 | 103.1 | 378.3 | 106.6 | 455.3 | 109.7 | ||||||||||
| LXPL-BHF2 -250 mil | RC2-470B -ZP (125 HP) | 2 | 35 | 477.2 | 160.2 | 585.0 | 166.6 | 711.6 | 172.6 | 858.8 | 177.8 | 1028.6 | 182.4 | 400 | Φ57 | Φ159 | Φ108 | Φ67 | 3500×1900×2550 | |
| 40 | 444.4 | 1750 | 548.8 | 182.0 | 699.0 | 188.6 | 809.0 | 194.5 | 971.2 | 200.0 | ||||||||||
| 45 | 409.8 | 191.0 | 507.2 | 198.8 | 623.8 | 206.2 | 756.6 | 213.2 | 910.6 | 219.4 | ||||||||||
| LXPL-BHF3 -375 mil | 3 | 35 | 715.8 | 240.3 | 877.5 | 249.9 | 1067.4 | 258.9 | 1288.2 | 266.7 | 1542.9 | 273.6 | 600 | Φ57 | Φ133 ×2 | Φ133 | Φ89 | 4500×1900×2500 | ||
| 40 | 666.6 | 262.5 | 838.2 | 273.0 | 1003.5 | 282.9 | 1213.5 | 291.9 | 1456.8 | 300.0 | ||||||||||
| 45 | 614.4 | 286.5 | 760.8 | 298.2 | 935.7 | 309.3 | 1134.9 | 319.8 | 1365.9 | 329.1 | ||||||||||
| LXPL-BHF4 -500 mil | 4 | 35 | 954.4 | 320.4 | 1170.0 | 333.2 | 1423.2 | 3452 | 1717.6 | 355.6 | 2057.2 | 364.8 | 800 | Φ76 | Φ159 ×2 | Φ159 | Φ108 | 5400×1900×2500 | ||
| 40 | 888.8 | 350.01 | 1097.6 | 364.0 | 1338.0 | 377.2 | 1618.0 | 389.2 | 1942.4 | 438.8 | ||||||||||
| 45 | 819.2 | 382.0 | 1014.4 | 397.6 | 1247.6 | 412.4 | 1513.2 | 426.4 | 1821.2 | 438.8 | ||||||||||
| Model jednotky | Com.Model | Cam. Pečlivost | Kondenzační tepl. (℃) | Teplota odpařování (℃) | Nádrž (L) | Zásobování potrubí (mm) | Odsávání potrubí (mm) | Prodejna plynu potrubí (mm) | kapalina vstupní potrubí (mm) | Rozměr (mm) (D׊×V) | |||||||||
| -15 | -10 | -5 | 0 | 5 | |||||||||||||||
| Kapacita chlazení Příkon (kw) | |||||||||||||||||||
| LXPL-BHF -130 mil | RC2-510B -Z (130 HP) | 1 | 35 | 254.3 | 85.9 | 311.9 | 89.3 | 379.3 | 92.5 | 457.8 | 95.4 | 548.3 | 97.8 | 200 | Φ42 | Φ108 | Φ67 | Φ54 | 3050×870×1450 |
| 40 | 236.8 | 93.8 | 292.6 | 97.5 | 356.6 | 101.1 | 431.3 | 104.4 | 517.7 | 107.2 | |||||||||
| 45 | 218.3 | 102.4 | 270.3 | 106.6 | 332.5 | 110.6 | 403.3 | 114.3 | 485.5 | 117.6 | |||||||||
| LXPL-BHF2 -260 mil | RC2-510B -ZP (130 HP) | 2 | 35 | 508.6 | 171.8 | 623.8 | 178.6 | 758.6 | 185.0 | 915.6 | 190.8 | 1096.6 | 195.6 | 400 | Φ57 | Φ159 | Φ133 | Φ89 | 3250×2100×1750 |
| 40 | 473.6 | 187.6 | 585.2 | 195.0 | 713.2 | 202.2 | 862.6 | 208.8 | 1035.4 | 214.4 | |||||||||
| 45 | 436.6 | 204.8 | 540.6 | 213.2 | 665.0 | 221.2 | 806.6 | 228.6 | 971.0 | 235.2 | |||||||||
| LXPL-BHF3 -390 mil | 3 | 35 | 762.9 | 257.7 | 935.7 | 267.9 | 1137.9 | 277.5 | 1373.4 | 286.2 | 1644.9 | 293.4 | 600 | Φ76 | Φ133 ×2 | Φ159 | Φ89 | 4350×2100×1800 | |
| 40 | 710.4 | 281.4 | 877.8 | 292.5 | 1069.8 | 303.3 | 1293.9 | 313.2 | 1553.1 | 321.6 | |||||||||
| 45 | 654.9 | 307.2 | 810.9 | 319.8 | 997.5 | 331.8 | 1209.9 | 342.9 | 1456.5 | 352.8 | |||||||||
| LXPL-BHF4 -520 mil | 4 | 35 | 1017.2 | 343.6 | 1247.6 | 357.2 | 1517.2 | 370.0 | 1831.2 | 381.6 | 2193.2 | 391.2 | 800 (venku) | Φ76 | Φ159 ×2 | Φ159 | Φ108 | 5400×2100×2050 | |
| 40 | 947.2 | 375.2 | 1170.4 | 390.0 | 1426.4 | 404.4 | 1725.2 | 417.66 | 2070.8 | 428.8 | |||||||||
| 45 | 873.2 | 409.6 | 1081.2 | 426.4 | 1330.0 | 442.4 | 1613.2 | 457.2 | 1942.0 | 470.4 | |||||||||
| LXPL-HF -140 mil | RC2-550B -Z (140 HP) | 1 | 35 | 271.3 | 94.4 | 322.6 | 98.2 | 404.6 | 101.7 | 488.3 | 104.9 | 584.8 | 107.5 | 200 | Φ42 | Φ108 | Φ67 | Φ54 | 3050×870×1450 |
| 40 | 252.3 | 103.1 | 312.1 | 107.3 | 380.3 | 111.2 | 460.0 | 114.8 | 552.2 | 117.9 | |||||||||
| 45 | 232.5 | 112.7 | 288.0 | 117.2 | 354.6 | 121.6 | 430.1 | 125.7 | 517.8 | 129.4 | |||||||||
| LXPL-BHF2 -280 mil | RC2-550B -ZP (140 HP) | 2 | 35 | 542.6 | 188.8 | 665.2 | 196.4 | 809.2 | 203.4 | 976.6 | 209.8 | 1169.6 | 215.0 | 400 | Φ57 | Φ159 | Φ133 | Φ89 | 3400×2150×1750 |
| 40 | 504.6 | 206.2 | 624.2 | 214.6 | 760.6 | 222.4 | 920.0 | 229.6 | 1104.4 | 235.8 | |||||||||
| 45 | 465.0 | 225.4 | 576.0 | 234.4 | 709.2 | 243.2 | 860.2 | 251.4 | 1035.6 | 258.8 | |||||||||
| LXPL-BHF3 -420 mil | 3 | 35 | 813.9 | 2832 | 997.8 | 294.6 | 1213.8 | 305.1 | 1464.9 | 314.7 | 1754.4 | 322.5 | 600 | Φ76 | Φ133 ×2 | Φ159 | Φ89 | 4550×2150×2050 | |
| 40 | 765.9 | 309.3 | 936.3 | 321.9 | 1140.9 | 333.6 | 1380.0 | 344.4 | 1656.6 | 353.7 | |||||||||
| 45 | 697.5 | 338.1 | 864.0 | 351.6 | 1063.8 | 364.8 | 1290.3 | 377.1 | 1553.4 | 388.2 | |||||||||
| LXPL-BHF4 -560 mil | 4 | 35 | 1085.2 | 377.6 | 1330.4 | 392.8 | 1618.4 | 406.8 | 1953.2 | 419.6 | 2339.2 | 430.0 | 800 (venku) | Φ76 | Φ159 ×2 | Φ159 | Φ108 | 5600×2150×2050 | |
| 40 | 1009.2 | 412.4 | 1248.4 | 4292 | 1521.2 | 444.8 | 1840.0 | 459.2 | 2208.8 | 471.6 | |||||||||
| 45 | 930.0 | 450.8 | 1152.0 | 466.8 | 1418.4 | 486.4 | 1720.4 | 502.8 | 2071.2 | 517.6 | |||||||||
| LXPL-HF -150 mil | RC2-580B -Z (150HP | 1 | 35 | 299.9 | 101.6 | 367.7 | 105.7 | 447.2 | 109.5 | 539.8 | 112.9 | 646.5 | 115.8 | 200 | Φ42 | Φ108 | Φ67 | Φ54 | 3050×870×1450 |
| 40 | 279.2 | 111.0 | 345.0 | 115.5 | 420.4 | 119.7 | 508.5 | 123.6 | 610.4 | 126.9 | |||||||||
| 45 | 257.4 | 121.3 | 318.6 | 126.2 | 392.0 | 130.9 | 475.5 | 135.3 | 572.4 | 139.3 | |||||||||
| LXPL-BHF2 -300 mil | RC2-580B -ZP (150 HP) | 2 | 35 | 599.8 | 203.2 | 735.4 | 211.4 | 894.4 | 219.0 | 1079.6 | 225.8 | 1293.0 | 231.6 | 500 | Φ57 | Φ159 | Φ133 | Φ89 | 3500×2150×1750 |
| 40 | 558.4 | 222.0 | 690.0 | 231.0 | 840.8 | 239.4 | 1017.0 | 247.2 | 1220.8 | 253.8 | |||||||||
| 45 | 514.8 | 242.6 | 637.2 | 252.4 | 784.0 | 261.8 | 951.0 | 270.5 | 1144.8 | 278.5 | |||||||||
| LXPL-BHF3 -450 mil | 3 | 35 | 899.7 | 304.8 | 1103.1 | 317.1 | 1341.6 | 328.5 | 1619.4 | 338.7 | 1939.5 | 347.4 | 800 (venku) | Φ76 | Φ133 ×2 | Φ133 | Φ108 | 4650×2150×2050 | |
| 40 | 837.6 | 333.0 | 1035.0 | 346.51 | 1261.2 | 359.1 | 1525.5 | 370.8 | 1831.2 | 380.7 | |||||||||
| 45 | 772.2 | 363.9 | 955.8 | 378.6 | 1176.0 | 392.7 | 1426.5 | 405.9 | 1717.2 | 417.9 | |||||||||
| LXPL-BHF4 -600 mil | 4 | 35 | 1199.6 | 406.4 | 1470.8 | 422.8 | 1788.8 | 438.0 | 2159.2 | 451.6 | 2586.0 | 463.2 | 800 (venku) | Φ76 | Φ159 ×2 | Φ159 | Φ108 | 5800×2150×2350 | |
| 40 | 1116.8 | 444.0 | 1380.0 | 462.0 | 1681.6 | 478.8 | 2034.0 | 494.4 | 2441.6 | 507.6 | |||||||||
| 45 | 1029.6 | 485.2 | 1274.4 | 504.8 | 1568.0 | 5236 | 1902.0 | 541.2 | 2289.6 | 557.2 | |||||||||
Detailní zobrazení
Kontaktujte nás
O NÁS
Zhejiang Lanxi Refrigeration Equipment Co., Ltd.
Jako Čína Hanbell pro střední až vysokou teplotu Dodavatelé a Hanbell pro střední až vysokou teplotu Továrna,
Zhejiang Lanxi Refrigeration Equipment Co., Ltd. se specializuje na účinná, ekologická a udržitelná chladicí řešení. Díky vysoce kvalitním produktům a inovativním technologiím sloužíme potravinářskému, farmaceutickému, chemickému průmyslu a odvětví chladicího řetězce, vytváříme energeticky účinné a ekologicky šetrné systémy pro naše zákazníky a podporujeme vzájemně prospěšný rozvoj průmyslu i životního prostředí.
Certifikát cti
Novinky
-
Co je průmyslový chladič vzduchu a jak funguje v chladicím systému? Představte si středně velkou chladící místnost postavenou pro skladování zmrazených potravin při teplotě -22 °C. Kompresorová jednotka a kondenzátor jsou umístě...
ČÍST VÍCE -
Kompletní průvodce výběrem kondenzátoru: Vyberte si ten správný kondenzátor pro průmyslové a HVAC systémy Kondenzátor je základní součást přenosu tepla široce používaná v systémech HVAC, průmyslovém chlazení, chemickém zpracování, výr...
ČÍST VÍCE -
Průvodce přizpůsobením OEM dodavatelů techniky chladírenských skladů Vzhledem k tomu, že poptávka po segmentovaných trzích v zámořském průmyslu chladírenských řetězců roste, mnoho dodavatelů a obchodníků s chladírenskými sklady se sna...
ČÍST VÍCE
KONTAKTUJTE NÁS
PRODUKTY
KONTAKTNÍ INFORMACE
- E-mail: [email protected]
- Telefon: +86-15258555916
- Adresa: 301 Punan Avenue, Pukou Street, Shengzhou City, Shaoxing City, Zhejiang Province.China
Copyright © Zhejiang Lanxi Refrigeration Equipment Co., Ltd. Všechna práva vyhrazena.
浙ICP备2022034605号-1
Velkoobchod Hanbell pro střední až vysokou teplotu Továrna
